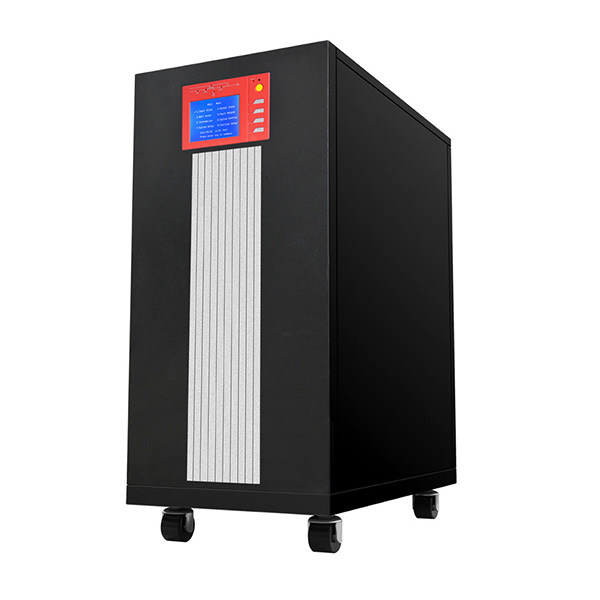

Online UPS 3ph input single phase output TD31 10KVA-40KVA

Main Features
1. High level battery reliability:
- Automatic battery test
- Battery care, Battery life span can be increased approximately by 20% more
2. Back feed protection: to avoid energy feeding back into the mains supply
3. Bypass may be deactivated to allow operation as a frequency converter (at 50 or 60 Hz), or as stabiliser
4. Easy to maintain (front access)
5. Reliable, filtered, stabilised and regulated sine wave output (double on-line concersion technology VFI according to EN50091-3 specifications) with filters for atmospheric disturbance suppression
6. High reliability: IGBT technology, full microprocessor control with no-break static and manual bypass
7. High level diagnostics: event log with 128 messages, states, measurements and alarms-available from the built-in LCD in several languages
8. The UPS may be configured with the RS232 serial port (flash upgradable )

products detail

Technical Parameters

Physical Parameters

MODEL (3 Phase Input/1 Phase Output)			TD3110K	TD3120K	TD3130K	TD3140K
Input Mains	Rated Voltage(V)		380V(Line Voltage)
	Rated Voltage & Range(V)		380V±25%
	Frequency & Range(Hz)		46Hz-54Hz
Bypass Input	Rated Voltage(V)		220V(Line Voltage)
	Rated Voltage & Range(V)		380V±25%
	Frequency & Range(Hz)		46Hz-54Hz
Output	Rated Power		10KVA/8KW	20KVA/16KW	30KVA/24KW	40KVA/32KW
	Rated Voltage(V)		220V(Line Voltage)
	Rated Voltage & Stability		220V±2%
	THDV		≤3%
			≤10%
	Output Power factor		0.8(Lag)
	Tracking Fruquency & Range(Hz)		46Hz~64Hz
	Fruquency & Stability(Battery Inverter)		(50+0.1)Hz/60+0.1)Hz
	Overload Capability		Less than 105%±5% for overload alarm; 105%±5%~125%±5% for 2 minutes; 125%±5%~150%±5% for 30 second; More than 150%±5% for 0.5 second;
	Converting time(Normal Mode)		<1mS
	Converting time(ECO Mode)		<25mS
System	System Efficiency(Linear Load)		≥76%	≥82%	≥85%	≥97%
	System Efficiency(ECO Mode)		≥96%
	Display		LCD+LED
	EMS/EMI	Transmission	EN50091-2
		Radiation	EN50091-2 CLASS-A
		Harmonic Current	IEC1000-3-4
		Resisting Interference	IEC 61000-4-2.3.4..6.8.9.11 Level III, IEC61000-4-5 Level IV
	Safety Requirements		GB4943-2001/IEC62040-1
	Noise Level(1M)		≤55dB
	Isolate Impedance(Ω)		>2M(500VDC)
	Surge Current Protection		IEC60664-1 IV
Environment	Operating Temperature		0°C - 40°C
	Elevation		<1000m
	Storing Temperature		-15°C - 45°C
	Operation Humidity		20% - 95%
Battery			192VDC
Dimension(Width x height x length)mm			1045 x 455 x 830			515×1135×830

UPS Overview

DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.

Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.Active input power factor correction (PFC): Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.Widened range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS copd be obviously prolonged.Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.The load power factor is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.Support the Generators: The wide range of input voltage and frequency can effectively separate the harmfp electric wave produces by the generators and provide safe and reliable power supply.Large-screen LCD
