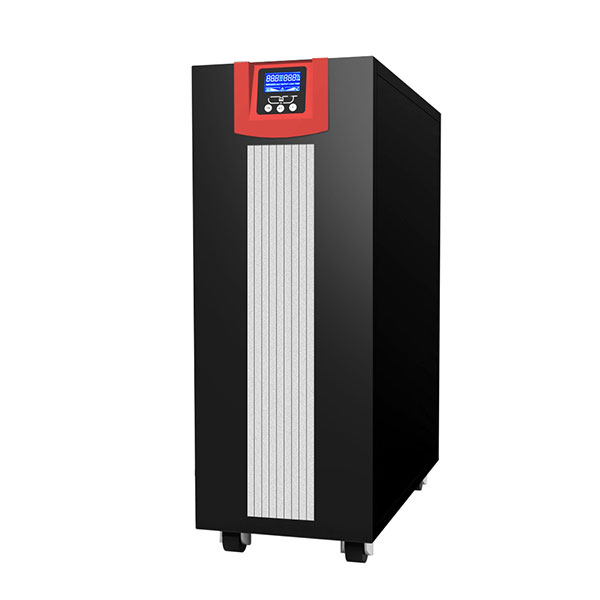

Online UPS Single phase TD11 3KVA-20KVA

Main Features
High level battery reliability:
- Automatic battery test
- Battery care, Battery life span can be increased approximately by 20% more
Back feed protection: to avoid energy feeding back into the mains supply
Bypass may be deactivated to allow operation as a frequency converter (at 50 or 60 Hz), or as stabiliser
Easy to maintain (front access)
Reliable, filtered, stabilised and regulated sine wave output (double on-line concersion technology VFI according to EN50091-3 specifications) with filters for atmospheric disturbance suppression

products detail

Main Features:
High reliability: IGBT technology, full microprocessor control with no-break static and manual bypass
High level diagnostics: event log with 128 messages, states, measurements and alarms-available from the built-in LCD in several languages
The UPS may be configured with the RS232 serial port (flash upgradable)

Technical Parameters

Physical Parameters

MODEL			3K	6K	10K	20K
Input Mains	Related Voltage(V)		380Vac three-phase + N
	Related Voltage & Range(V)		220V ± 25%
	Frequency & Range(Hz)		50/60H ±4Hz
Bypass Input	Related Voltage(V)		220V / 230V
	Related Voltage & Range(V)		220V / 230V ± 25%
	Frequency & Range(Hz)		50/60H ±4Hz
Output	Related Power		3KVA/2.4KW	6KVA/4.8KW	10KVA/8KW	20KVA/16KW
	Related Voltage(V)		220V / 230V
	Related Voltage & Stability		220 ± 2%
	THDV	Linear Load	≤3%
		Non-linear Load	≤8%
	Output Power factor		0.8 (Lag)
	Tracking Fruquency & Range(Hz)		50/60H ±4Hz
	Fruquency & Stability (Battery Inverter)		(50/60+0.1) Hz
	Overload Capacity		Less than 105%±5% for overload alarm; 105%±5%~125%±5% for 10 minutes; 125%±5%~150%±5% for 30 second; More than 150%±5% for 0.5 second;
	Convering time (Normal Mode)		<1ms
	Convering time (ECO Mode)		<25ms
	System Efficiency (Linear Load)		≥76	≥83	≥85	≥87
	System Efficiency (ECO Mode)		≥96%
System	Display		LCD / LED
	EMS /EMI	Transmission	IEC EN62040-02
		Radiation	IEC EN62040-02
		Resisting Interference	IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III
	Safety Requirements		GB4943-2001/IE62040-1
	Noise Level(1M)		≤55dB
	Isolate Impedance		>2M (500VDC)
	Surge Current Protection		IEC60664-1 IV
Environment	Operating Temperatures		0℃~40℃
	Elevation		<1000m
	Storing Temperatures		-15℃~45℃
	Operation Humidity		20%~95%
Battery			192VDC

UPS Overview

DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.

Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.Active input power factor correction (PFC): Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.Widened range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS copd be obviously prolonged.Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.The load power factor is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.Support the Generators: The wide range of input voltage and frequency can effectively separate the harmfp electric wave produces by the generators and provide safe and reliable power supply.Large-screen LCD
