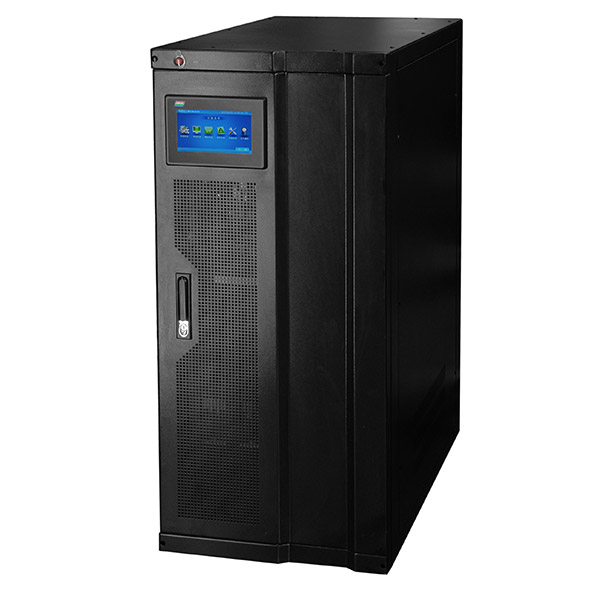

Online UPS 3ph input 3ph output TDX33 10KVA-30KVA

Functions & Features:
- Input PFC
- PF 0.9
EXTERMEMLY HIGH INPUT EFFICIENCY
THDI <5% UNDER TIPICAL INPUT POWER
- IGBT Rectifier
- Compatiable with solar power to work as solar UPS
- Large touch LCD display
- EXTERMEMLY HIGH INPUT EFFICIENCY
- THDI <5% UNDER TIPICAL INPUT POWER

products detail

Technical Parameters

Physical Parameters

Model(3 Phase Input /3 Phase Output)	TDX33 10Kva	TDX33 20Kva	TDX33 30Kva	Remark
Input voltage
Rated voltage	380VAC			Line to line voltage
Phase	3~+ N + PE(protective earth)
Bypass voltage range	380VAC-50% to 380VAC+25%			can be adjusted by software
Bypass low loss	190VAC
Bypass high loss	475VAC
Input frequency
Rated frequency	50Hz			In the range of 46-54Hz,output frequency follows input. In the range of [40,46]&[54,60],UPS works in line mode with 50Hz .
Frequency low loss	(40~49)±0.2Hz(default:40Hz)
Frequency high loss	(51~60)±0.2Hz(default:60Hz)
Input Performance
Rectifier type	IGBT Rectifier
Input power factor	>0.99
Input THDi	< 6%			Full load, and line voltage THDv < 2%
Output power
VA/watt	10kVA /9kW	20kVA /18kW	30kVA /27kW
Rated voltage	380VAC			Line voltage
Phase	3~+ N
Voltage range	200/208/220/230/240VAC (phase voltage)			Could be adjusted by software. 10% derating for 208VAC/200VAC.
Voltage regulation	±1%			Balanced full R load
	≤3%			Unbalanced full R load
Transient response	≤9%			R load 0%~100%~0%
	≤6%			R load 20%~100%~20%
Transient recovery	≤60ms voltage recovery to 90%			Full RCD load
Bypass output before turn-on	Yes
Output frequency range
Line mode	1.Same as input frequency (46Hz~54Hz)			50Hz system. It could be set 60Hz system
	2.50Hz(Input frequency>54Hz or Input frequency<46Hz)
Battery mode	(50+0.1) Hz
Efficiency (Line mode)	--	≥ 86%	≥ 88%	Full R load
Overload (line mode /battery mode )	Overload warning only			100%±5%≤load≤105%±5%
	10Min,then transfer to bypass and alarm.			105%±5%
	1Min,then transfer to bypass and alarm.			125%±5%
	0.5S,then transfer to bypass and alarm.			load>150%±5%
Work temperature	0℃~40℃
Altitude	<1000m
Audible noise	≤60dB
Storage temperature	-15℃~45℃
Work humidity	20%~95%
EMI	IEC62040-02			Class C3
EMS(Anti-interference)	IEC 61000-4-2.4.5 Level IV, IEC61000-4-3 Level III
Safety	GB4943-2001/IEC62040-1
Size (WDH(mm))	4818901175

UPS Overview

DSP Technology: The advanced DSP digital control technology enable UPS more stable performance.

Environment Friendly: This UPS is eco-designed and manufactured to meet the China local pollution control requirement of Electronic Products, which means it will cause no harm to environment and human beings in normal usage.Active input power factor correction (PFC): Digitalized control of the PFC enable the UPS to keep input power factor above 0.99 to prevent possible electric grid pollution and meanwhile mostly save the cost.Widened range of input voltage and frequency: We intentionally widen the range of input factors to make sure the UPS can apply to various environment, which will effectively sustain the battery charging even in unstable power environment so that the service life of the UPS copd be obviously prolonged.Zero power switch delay: When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.Adaptive Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.The load power factor is 0.8: it adapts the features of most current electric equipment and elevates the load-bearing capacity of the machines.Support the Generators: The wide range of input voltage and frequency can effectively separate the harmfp electric wave produces by the generators and provide safe and reliable power supply.Large-screen LCD
